Picking the best monitor for M6 Mac mini comes down to panel type, because 27 inch 5K models match the Apple Studio Display at 218 PPI while 4K, QHD and ultrawide models trade sharpness for refresh rate or width. The mini drives two displays at up to 6K at 60Hz or 4K at 165Hz, and a third at up to 5K at 60Hz over Thunderbolt or 4K at 60Hz over HDMI.
Thunderbolt 4 suits the 5K monitors and USB-C models, and the HDMI port suits a third 4K screen. The best 4K monitors for M6 Mac mini are the step down if 218 PPI is not a priority, and a screen from the portable monitors makes a third display that fits in a bag.
iThinkDifferent may earn a commission from purchases made through links in this article.
| Product | Price | Discount | Why we picked it | Buy |
|---|---|---|---|---|
 ViewSonic VP2788-5K 27 Inch 5K Monitor | $849.99$929.99 | 9% OFF | Pantone Validated 5KA 5K panel with Thunderbolt 4 and daisy chaining. | Check on Amazon |
 ASUS ProArt PA279CRV 27 Inch 4K Monitor | $399$429 | 7% OFF | Calibrated 4K99% DCI-P3 and Adobe RGB with Calman verification. | Check on Amazon |
 Dell UltraSharp 27 Thunderbolt Hub Monitor U2726DER | $599.99$639.99 | 6% OFF | QHD at 120HzAn IPS Black panel with a Thunderbolt hub and KVM. | Check on Amazon |
 Dell 34 Monitor S3425DW | $399.99$419.99 | 5% OFF | UltrawideA 34 inch WQHD panel at 120Hz with USB-C and speakers. | Check on Amazon |
 Apple Studio Display | $1,554 | Current price | All-in-one 5KA 5K panel with a camera, speakers and Thunderbolt ports. | Check on Amazon |
 BenQ PD2730S 27 Inch 5K Thunderbolt 4 Monitor | $1,099.99 | Current price | Matte 5KA nano matte 5K panel with Thunderbolt 4 and a KVM switch. | Check on Amazon |
 Samsung ViewFinity S8 (S80HF) 27 Inch 5K Monitor | $699.99 | Current price | 5K with Ethernet90W USB-C, a LAN port and a KVM switch. | Check on Amazon |
 KTC H27P3 27 Inch 5K Monitor | $609.99 | Current price | Dual mode 5K5K at 60Hz plus a QHD mode at 120Hz. | Check on Amazon |
| Dell UltraSharp 32 Thunderbolt Hub Monitor U3226QER | $1,029.99 | Current price | Large 4K at 120HzA 32 inch IPS Black panel with a Thunderbolt hub. | Check on Amazon |
 Dell UltraSharp U2725QE 27 Inch 4K Thunderbolt Hub Monitor | $638.98 | Current price | 4K at 120HzA 27 inch IPS Black panel with Thunderbolt 4 and 140W. | Check on Amazon |
 LG UltraFine 27UP850K-W 27 Inch 4K Monitor | $349.99 | Current price | 4K with USB-CA 4K IPS panel with 90W USB-C and built-in speakers. | Check on Amazon |
The M6 Mac mini Runs Three External Displays, and the Port Sets the Limit
Two external displays run at up to 6K at 60Hz or 4K at 165Hz, and a third runs at up to 5K at 60Hz over Thunderbolt or 4K at 60Hz over HDMI. Two displays can share one Thunderbolt port, so a daisy chained pair of 5K monitors leaves the other two Thunderbolt 4 ports free.
The mini has three Thunderbolt 4 ports and one HDMI port but no USB-A. A 27 inch 5K panel works out to 218 PPI, a 27 inch 4K panel to 163 PPI, and the mini has its own power cable, so the power delivery rating of a monitor matters less here than the ports it adds.

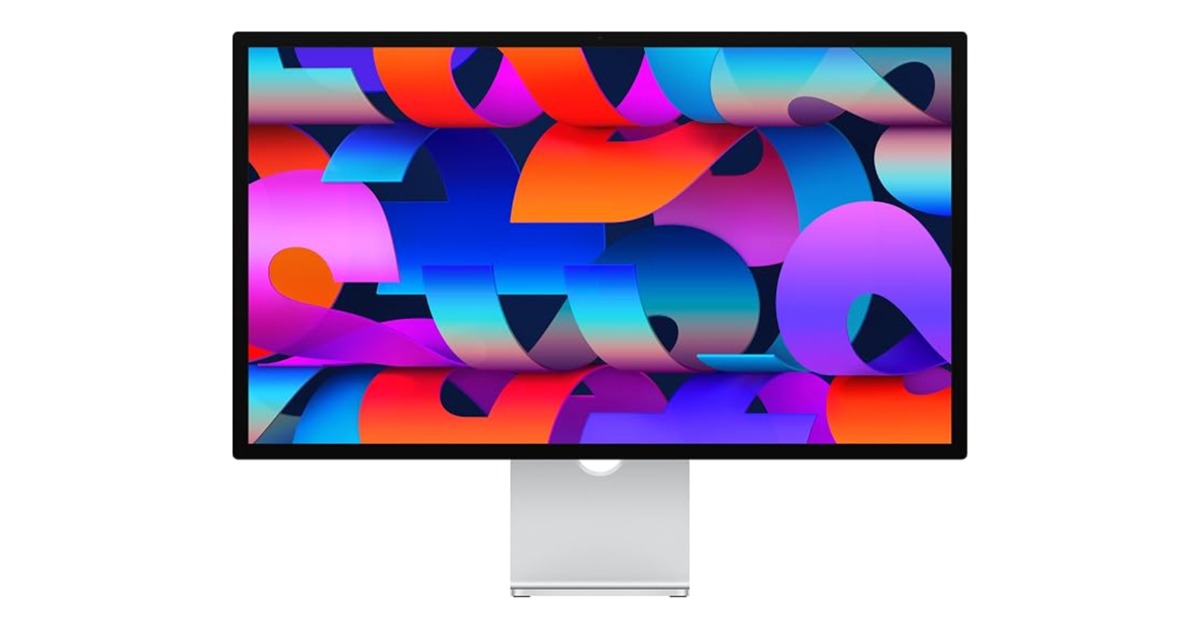

The Apple Studio Display Pairs a 27 Inch 5K Panel With a 12MP Center Stage Camera and Six Speakers
The Apple Studio Display is the only monitor in this guide with a camera and a microphone array built in. It has a 27 inch 5K Retina panel with 600 nits of brightness and P3 wide color, a 12MP Center Stage camera with Desk View, a three-mic array and a six-speaker system with Spatial Audio.
Two Thunderbolt 5 ports and two USB-C ports sit on the back, and the M6 Mac mini connects to them over Thunderbolt 4. An anti-reflective coating is standard with a nano-texture glass option, and the included stand only tilts, so the height-adjustable stand is sold separately.

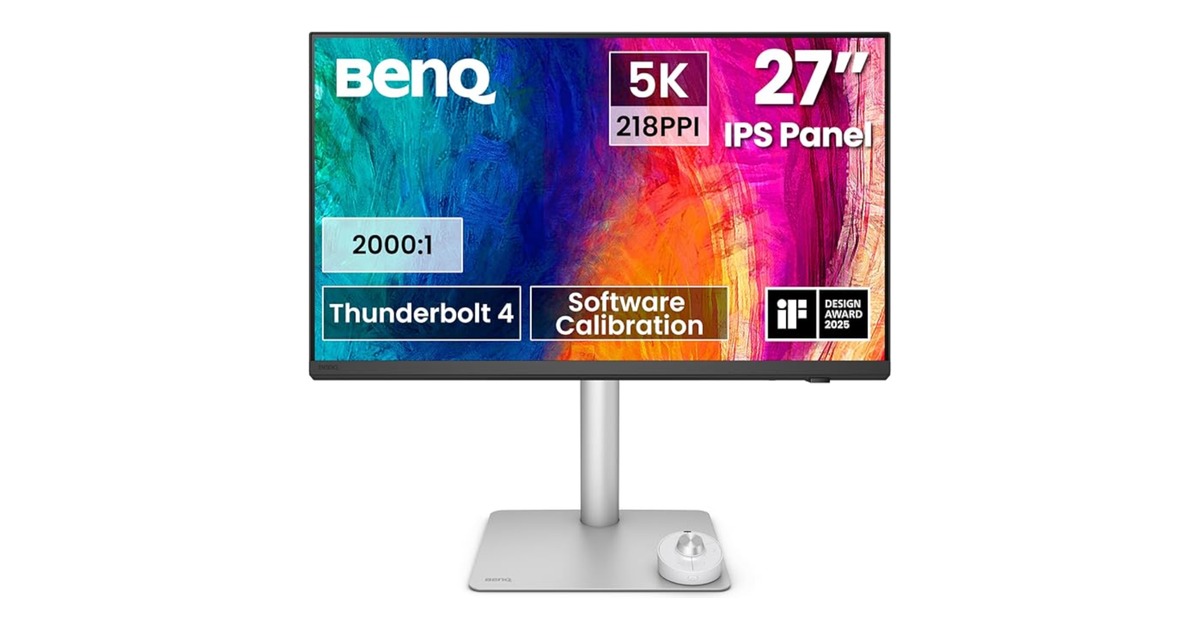

The BenQ PD2730S Has a 5K Nano Matte Panel, 90W Thunderbolt 4 and a Wireless Hotkey Puck
A TÜV certified nano matte coating sets the BenQ PD2730S apart, because it diffuses ambient light on a 27 inch 5K panel at 218 PPI. Color reaches 98% P3 with a 2000:1 contrast ratio, which suits photo work in a bright room.
Thunderbolt 4 carries 90W of power and 40Gbps of data, and a built-in KVM switch and a height-adjustable stand come with it. A wireless Hotkey Puck switches between computers, and the monitor can daisy chain over Thunderbolt 4 to a second display.

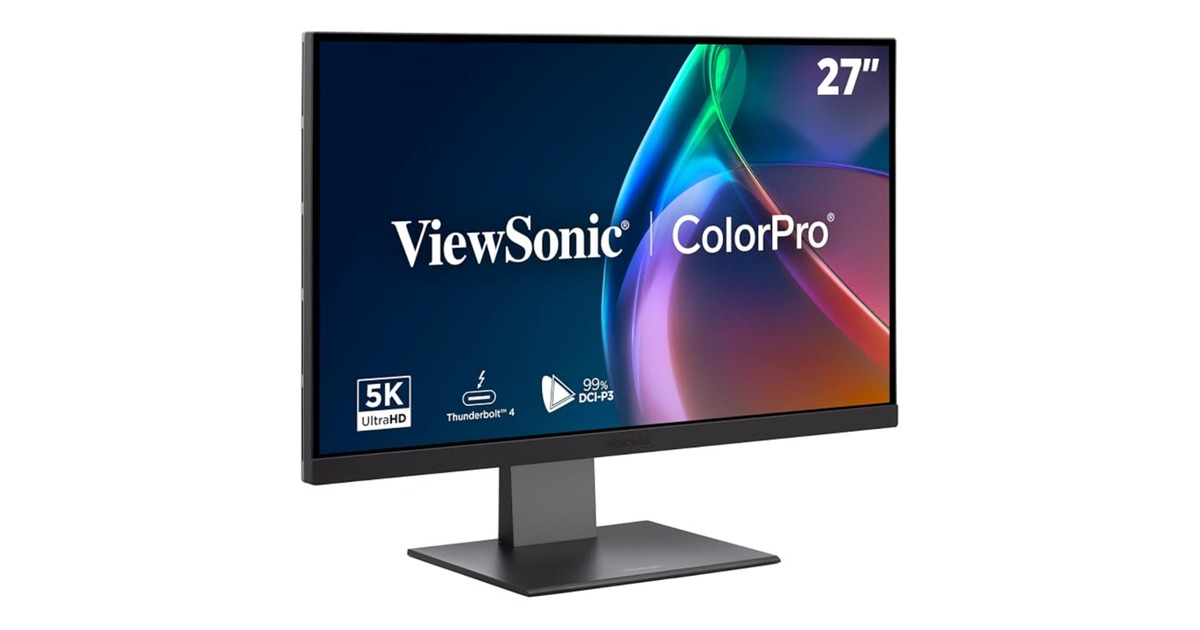

The ViewSonic VP2788-5K Is a Pantone Validated 5K Display With 100W Thunderbolt 4
The ViewSonic VP2788-5K is built for a two screen desk, because its Thunderbolt 4 output daisy chains a second 5K monitor from the same port. The 27 inch 5K IPS panel reaches 100% sRGB and 99% DCI-P3 and is Pantone Validated.
Thunderbolt 4 carries 40Gbps and up to 100W of power, and HDMI and DisplayPort inputs sit beside the USB-C port. Two chained monitors share one Thunderbolt port on the mini, which leaves the other two ports free.

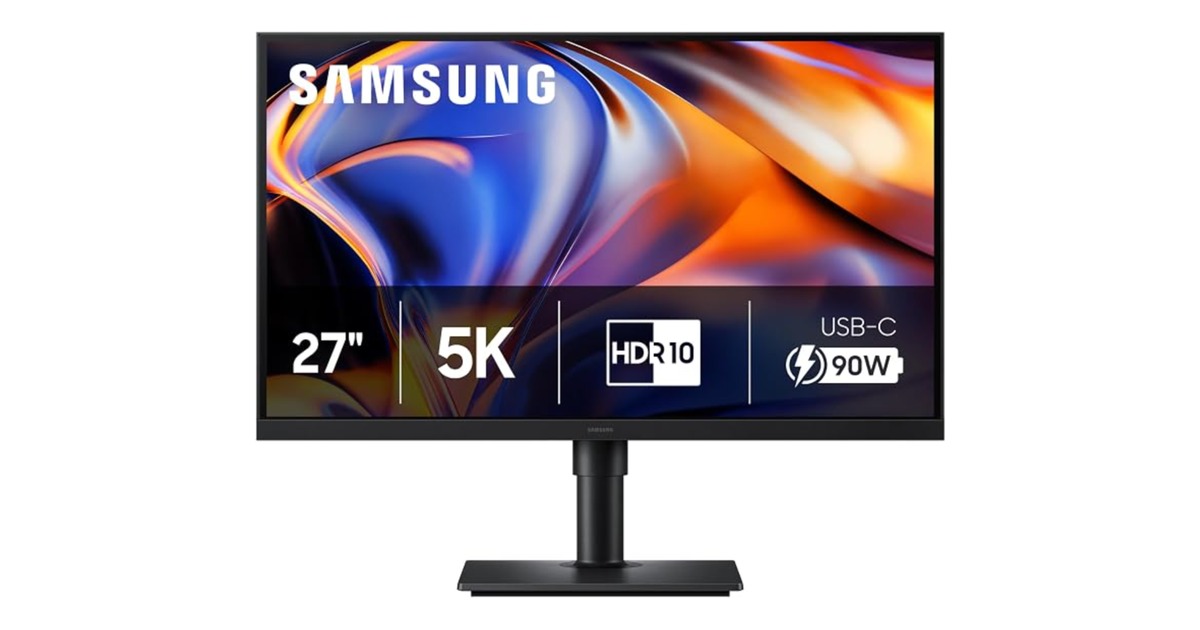

The Samsung ViewFinity S8 (S80HF) Delivers 5K at 218 PPI With 90W USB-C and Built-In Ethernet
The Samsung ViewFinity S8 (S80HF) is the 5K monitor with Ethernet, since a LAN port sits next to a USB-C port that carries data and 90W of power at the same time. The 27 inch panel runs 5120 by 2880 pixels with HDR10 support.
A built-in KVM switch lets one keyboard and mouse control two sources. The refresh rate tops out at 60Hz, so it suits office and photo work more than fast motion.

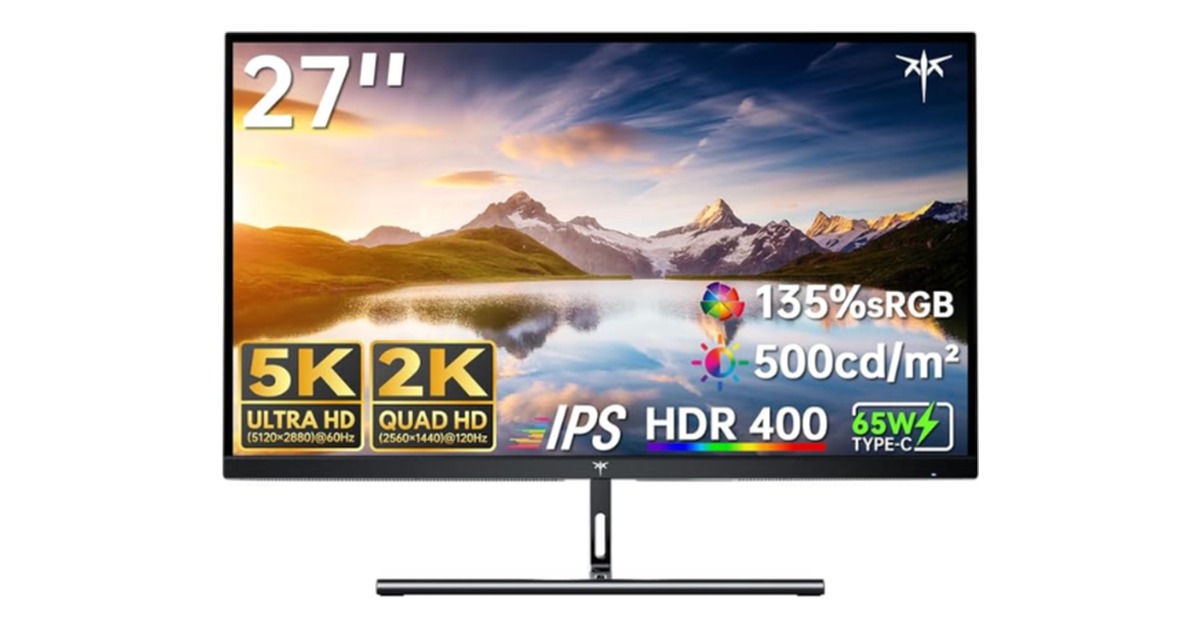

The KTC H27P3 Switches Between 5K at 60Hz and a QHD Mode at 120Hz
A dual mode switch is what the KTC H27P3 offers over other 5K screens, because it drops from 5120 by 2880 at 60Hz to 2560 by 1440 at 120Hz for smoother motion. The 27 inch panel reaches 99% DCI-P3 and 100% sRGB, with HDR400 support and 500 cd/m² of brightness.
A 65W USB-C port, DisplayPort 1.4 and HDMI 2.0 handle video, and two USB-A 3.0 ports sit alongside them. The HDMI 2.0 port supports 4K at 60Hz only, so 5K needs the USB-C or DisplayPort connection.

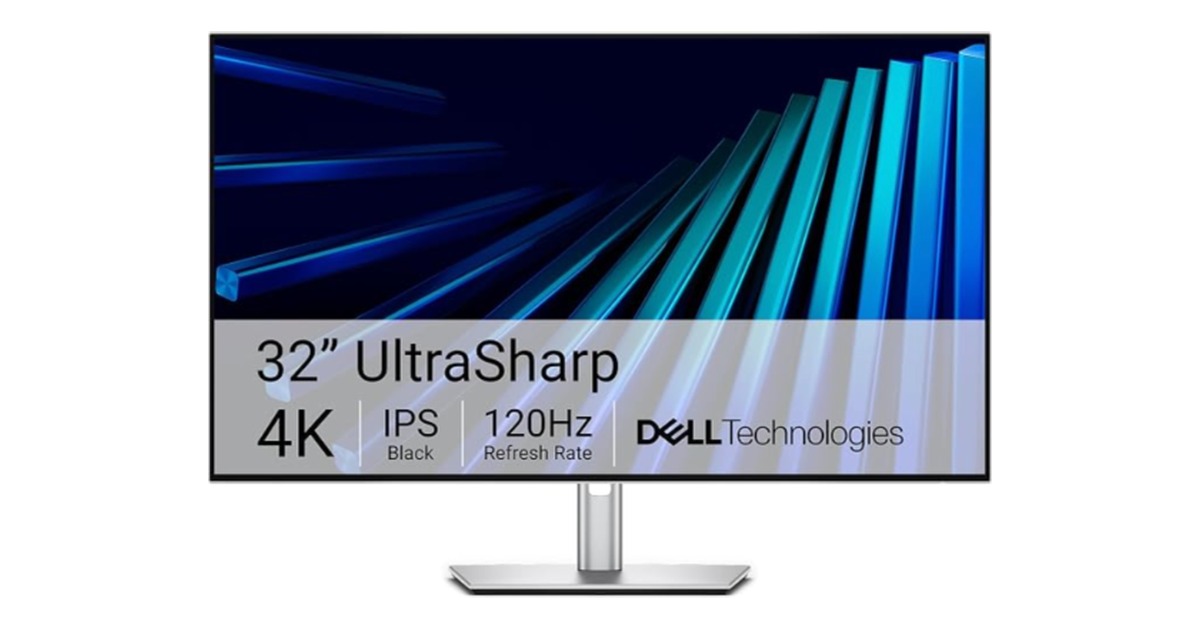

The Dell UltraSharp 32 Thunderbolt Hub Monitor Runs 4K at 120Hz on an IPS Black Panel
The Dell UltraSharp 32 Thunderbolt Hub Monitor U3226QER is the largest 4K screen here, a 32 inch IPS Black panel at 120Hz with a 3,000:1 contrast ratio. It reaches 99% Display P3 and is factory calibrated to Delta E below 1.5.
The Thunderbolt hub design adds Ethernet and USB ports, and a built-in KVM switch shares one keyboard and mouse between two computers. Dell tests it with macOS, and at 32 inches the 4K panel works out to about 138 PPI, softer than a 27 inch 4K screen.
The Dell UltraSharp U2725QE Runs 4K at 120Hz and Sends Up to 140W Over Thunderbolt 4
The Dell UltraSharp U2725QE is a 27 inch 4K IPS Black monitor at 120Hz with 99% DCI-P3 coverage and factory calibration to Delta E below 1.5. Thunderbolt 4 carries video, data and up to 140W of power over one cable.
An HDMI 2.1 port, USB-C, USB-A and Ethernet ports sit on the back, and daisy chaining supports up to two additional 4K monitors. The stand adjusts for height, tilt, swivel and pivot, and the 163 PPI panel is sharper than the 32 inch Dell but softer than any 5K screen here.

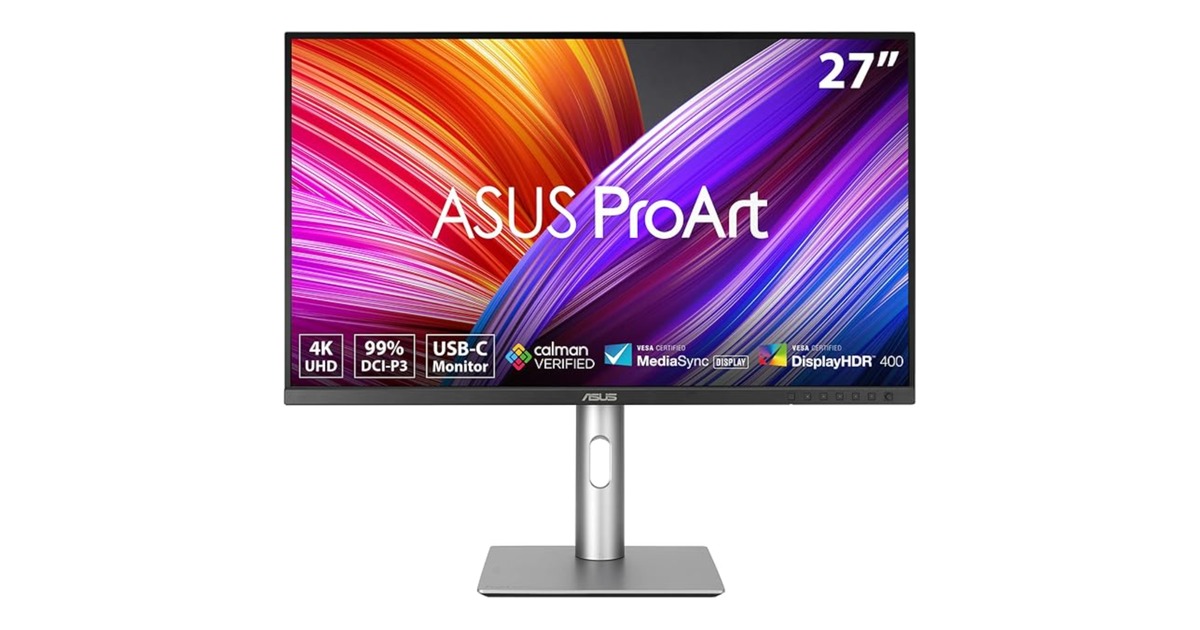

The ASUS ProArt PA279CRV Reaches 99% of DCI-P3 and Adobe RGB With Calman Verification
The ASUS ProArt PA279CRV is the 4K monitor for calibrated color, a 27 inch IPS display with 99% DCI-P3, 99% Adobe RGB and 100% sRGB coverage. It is Calman Verified, factory calibrated to Delta E below 2 and supports DisplayHDR 400.
USB-C delivers 96W, and two DisplayPort 1.4 ports support daisy chaining beside two HDMI 2.0 ports and three USB-A ports. The panel runs at 60Hz, so motion is not its strength.

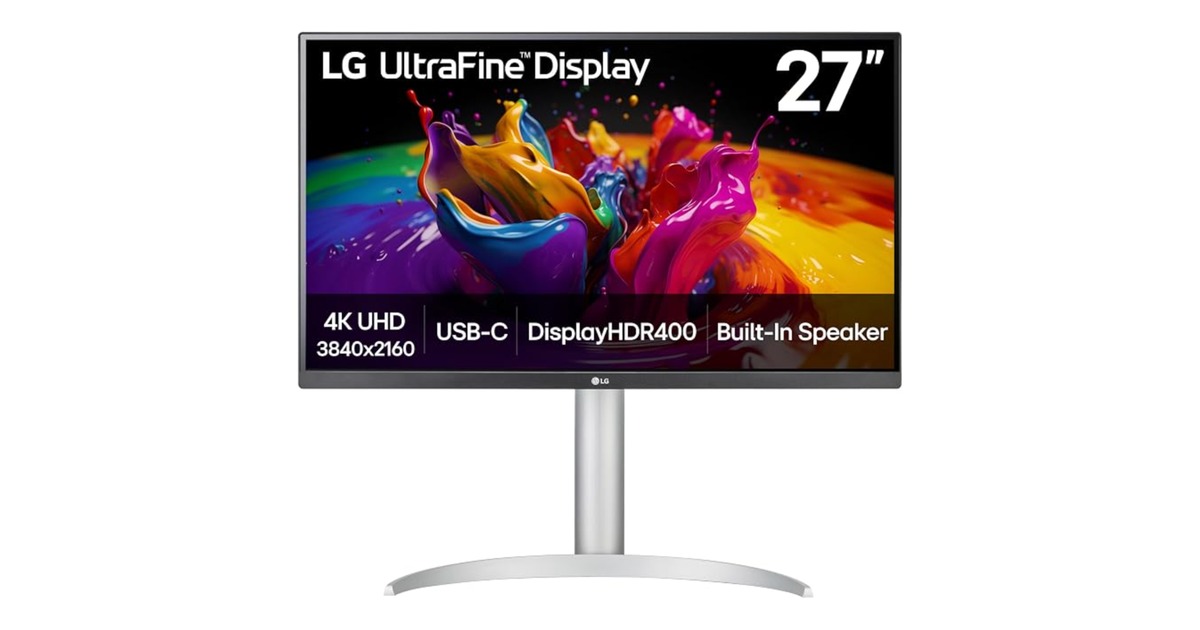

The LG UltraFine 27UP850K-W Offers 4K, 90W USB-C and Stereo Speakers
The LG UltraFine 27UP850K-W puts USB-C and speakers in one panel, a 27 inch 4K IPS display with 95% DCI-P3 coverage and DisplayHDR 400. USB-C carries video and data with 90W of power.
DisplayPort, two HDMI ports, two USB 3.0 ports and a headphone jack sit beside it, and Waves MaxxAudio stereo speakers are built in. The stand adjusts for height, tilt and pivot, and the refresh rate is 60Hz.

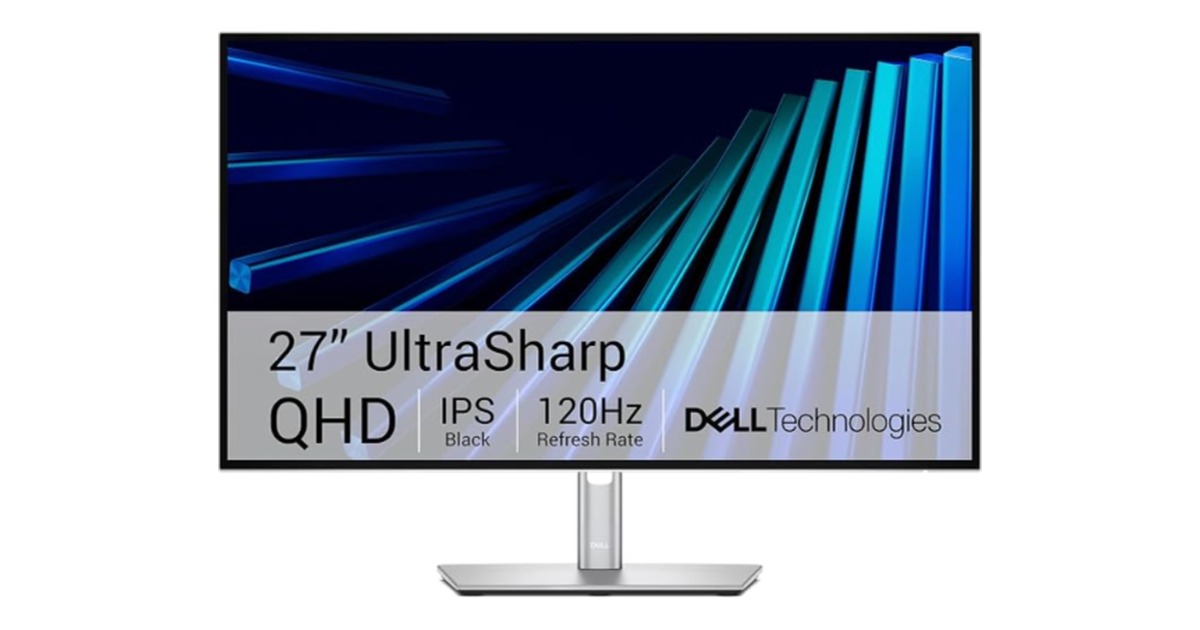

The Dell UltraSharp 27 Thunderbolt Hub Monitor Pairs QHD at 120Hz With IPS Black Contrast
The Dell UltraSharp 27 Thunderbolt Hub Monitor U2726DER is a 27 inch QHD display at 2560 by 1440 and 120Hz, with an IPS Black panel and a 2,000:1 contrast ratio. It reaches 100% sRGB and 98% Display P3.
Thunderbolt hub ports and a KVM switch let two computers share one keyboard and mouse, and Dell tests it with macOS. QHD at 27 inches works out to about 109 PPI, which looks softer than 4K or 5K at the same size.

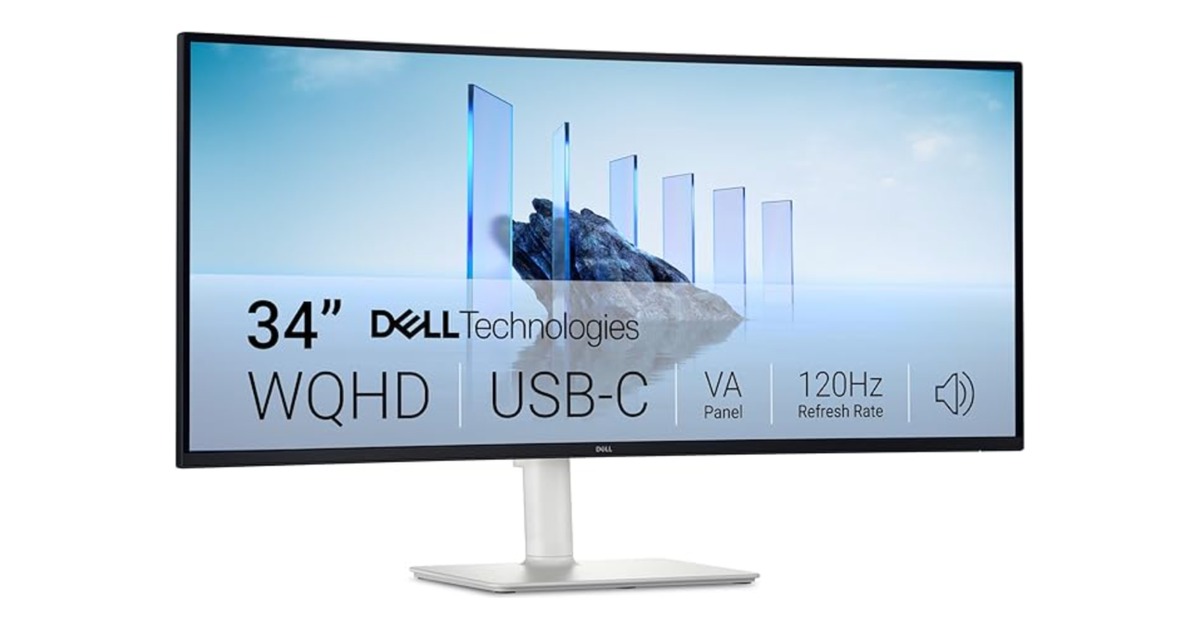

The Dell 34 Monitor S3425DW Is an Ultrawide WQHD Display With 65W USB-C and Built-In Speakers
The Dell 34 Monitor S3425DW is the only ultrawide here, a 34 inch WQHD VA panel at 120Hz with a 3,000:1 contrast ratio and 99% sRGB and 95% DCI-P3 coverage. One wide screen takes the place of two monitors side by side.
USB-C provides 65W of power, and two 10W speakers and HDR10 support are built in. ComfortView Plus cuts blue light emission to 35% or less, and the panel works out to about 110 PPI.
Pixel Density Comes First, Then the Ports a Monitor Adds
Pixel density sets how sharp text looks, at 218 PPI for a 27 inch 5K panel, 163 PPI for 27 inch 4K and about 109 PPI for QHD. A built-in KVM switch is the next filter if a laptop shares the desk, and the BenQ PD2730S, Samsung ViewFinity S8 (S80HF), Dell UltraSharp 32 Thunderbolt Hub Monitor U3226QER and Dell UltraSharp 27 Thunderbolt Hub Monitor U2726DER include one.
A monitor with few ports pairs with the Thunderbolt hubs for M6 Mac mini, which add the USB-A ports the mini does not have. Built-in speakers come with the Apple Studio Display, ASUS ProArt PA279CRV, LG UltraFine 27UP850K-W and Dell 34 Monitor S3425DW.
My Pick Is the Apple Studio Display for Camera and Speakers and the LG UltraFine 27UP850K-W for 4K
If I were building a desk around the M6 Mac mini, I would buy the Apple Studio Display, because the camera, microphones and speakers remove the need for separate accessories. For a 4K screen, the LG UltraFine 27UP850K-W puts USB-C and speakers in one panel.
The BenQ PD2730S is the 5K choice for color work in a bright room, and the Dell 34 Monitor S3425DW is the one I would buy for an ultrawide.
Questions About Monitors for the M6 Mac mini
How many monitors can the M6 Mac mini run?
It runs three external displays, two at up to 6K at 60Hz or 4K at 165Hz and a third at up to 5K at 60Hz over Thunderbolt or 4K at 60Hz over HDMI. The M6 Mac mini three display limit explains why.
Which port should a monitor use on the M6 Mac mini?
Any of the three Thunderbolt 4 ports on the back carries video to a USB-C monitor. The HDMI port handles a monitor with an HDMI input at up to 4K at 60Hz.
Is a 5K monitor worth it for the M6 Mac mini?
A 27 inch 5K monitor has 218 PPI, compared with 163 PPI for a 27 inch 4K monitor, so text and icons look sharper at the same size.
Which monitors for the M6 Mac mini have a built-in KVM switch?
The BenQ PD2730S, Samsung ViewFinity S8 (S80HF), Dell UltraSharp 32 Thunderbolt Hub Monitor U3226QER and Dell UltraSharp 27 Thunderbolt Hub Monitor U2726DER include a KVM switch.
Which monitors for the M6 Mac mini have built-in speakers?
The Apple Studio Display, ASUS ProArt PA279CRV, LG UltraFine 27UP850K-W and Dell 34 Monitor S3425DW have speakers built in.
What resolution is 5K?
It is 5120 by 2880 pixels, and a 4K monitor is 3840 by 2160 pixels.
